When polymer lotion is used as a surface treatment agent for coatings, adhesives, chemical fiber fabrics, leather, paper and other surfaces, its film-forming property is one of the important technical indicators. Researchers are constantly improving their technical specifications and formulas in order to manufacture new products with lower film-forming temperatures. Therefore, detecting the Minimum Film Forming Temperature (MFFT) is an important indicator for this type of coating, and the ideal instrument for conveniently measuring MFFT is the PS 2365 Minimum Film Forming Temperature Tester (MFFT).

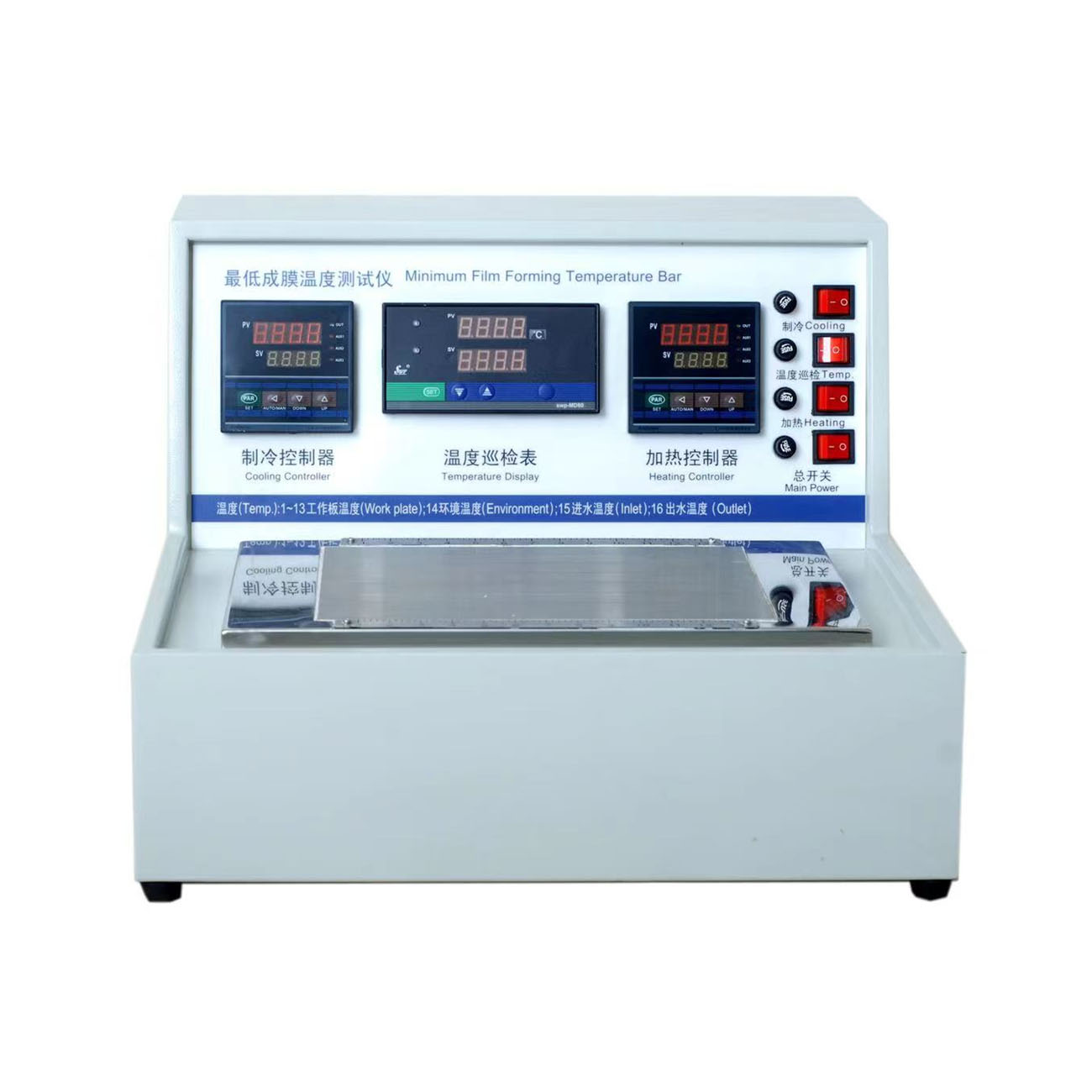

The PS 2365 minimum film forming temperature tester MFFT is designed and manufactured d on the national standard GB/T 9267. It is a new generation of paint film testers, which has many advantages of traditional testing instruments both domestically and internationally. It also integrates advantages such as desktop, energy-saving, ultra wide workbench, and accurate temperature measurement, making it a leader in similar instruments.
Technical Parameter
Gradient plate working temperature range
-Arbitrary adjustment between 7 ℃ and 70 ℃
Gradient plate detection points
13
Gradient interval
20mm
Test paint tank (6 pieces)
Length 240mm
Width 22mm (National standard 20-25mm)
Depth 0.25mm (national standard 0.20-0.30mm)
Inspection table display (16 o'clock)
1~13 points are the working gradient temperature
14 is the ambient temperature of the instrument
15/16 is the inlet and outlet temperature of cool water
