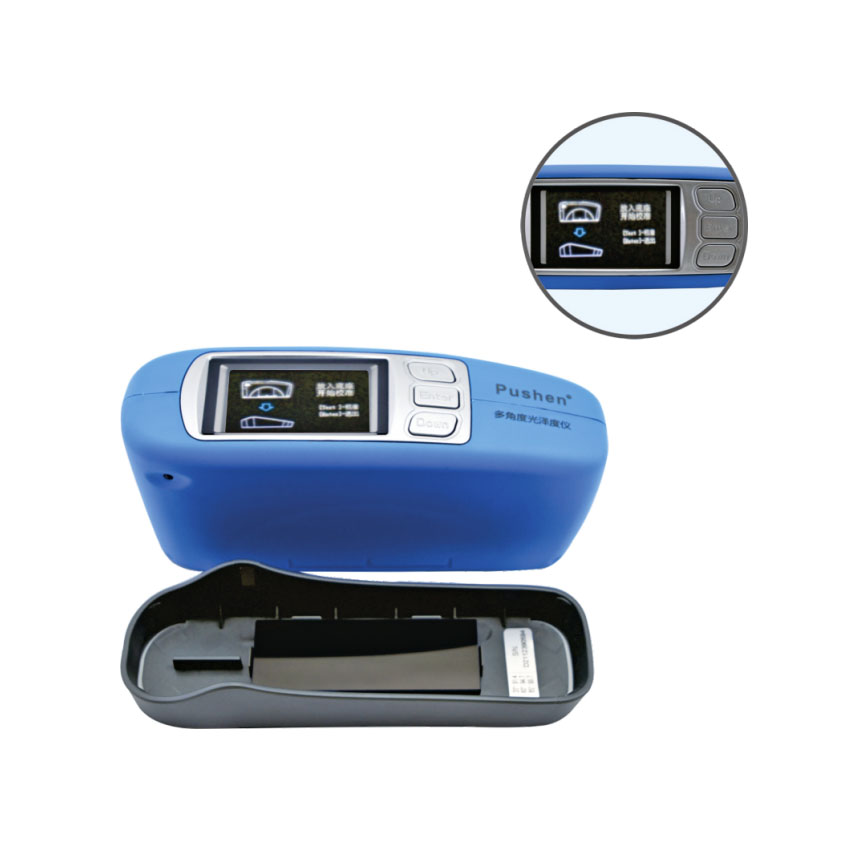

WGG-20/60/85Multi Angle Glossmeter
Mainly used for measuring the surface gloss of materials in industries such as spraying, plastic, printing, l, ceramics, building materials, leather, paint, etc.
Standard: DIN 67530、ISO 2813，ASTM D 523，JIS Z8741、BS 3900 Part D5、JJG696
Technical Parameter
Measuring angles | 20°、60°、85° |
Measurement spot (mm) | 20°：10*10 60°：9*15 85°：5*38 |
Measurement range | 20°：0-2000GU 60°：0-1000GU 85°：0-160GU |
Resolving power | 0.1GU |
Measurement mode | Simple mode, standard and sample measurement mode |
Measurement repeatability accuracy | 0-100GU:0.2GU 100-1000GU:0.2%GU |
Measurement accuracy | Meet the requirements of JJG 696 Level 1 working glossmeter |
Measurement time | 0.5s |
Data storage | Can store 100 standard samples and 10000 samples |
Size (mm) | 165*51*77 (length*width*height) |
Weight | Approximately 400g |
Language | Simplified Chinese, English |
Battery level | 3000mAh lithium battery |
Interface | USB,Bluetooth (optional) |
Upper computer software | include |
Working temperature | 0-40 ℃ |
Humidity | Less than 85%, no condensation |
Parts | 5V/2A charger, USB data cable, manual, CD, calibration standard board |
Order Number
PS 2604 | WGG-20/60/85 Multi Angle Glossmeter |
