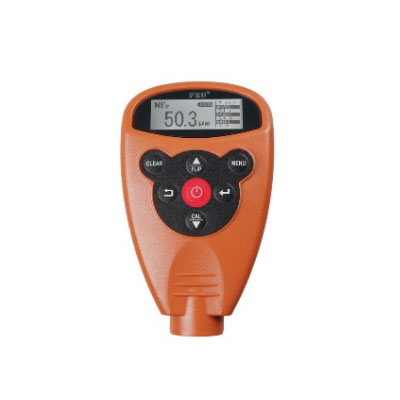

Dual use thickness gauge
This instrument is a portable measuring instrument that can quickly, non-destructive, and accurately measure coating thickness. It can be used in both laboratories and engineering sites. By using different measuring heads, various measurement needs can also be met. This instrument can be widely used in testing fields such as manufacturing, l processing, chemical industry, and commercial inspection. It is an essential instrument for material protection professionals.
Standard:GB/T 4956, GB/T 4957, JB/T 8393, JJG 889,JJG 818
Technical Parameter
Measuring principle | Automatic recognition: electromagnetic (magnetic substrate)+eddy current (non-magnetic substrate) |
Measuring range | 0-1500 um |
Measurement accuracy error | Zero calibration：±（1+3%H）； Five point calibration：± [(1%+3%H)]H+1.5 |
Bluetooth APP Functions | Display the maximum, minimum, and average values of multiple tests, store data, and generate reports |
Temperature/Humidity | 0℃-40℃；≤85% |
Minimum Matrix | 10mm*10mm |
Minimum Curvature | Convex：5mm concave：5mm |
Thinnest Substrate | 0.4mm |
Instrument Weight | 115g (With two No. 5 batteries) |
Instrument Size | 110mm*65mm*30mm |
Order Number
PS 2634/1 | Dual use thickness gauge |
Shipping List
Dual use thickness gauge, Zero calibration board, User manual
